The product consists of the transmitter and the receiver, use advanced uncompressed digital HD video and high-speed digital fiber optic transmission technology, you can easily transmit a variety of resolutions of computers, high-definition video sources, HD DVD / DVR and other equipment output of VGA HD signals over long distances to the remote, and with local VGA loop-through, independent analog audio, forward 232, anti-interference ability, ensure signal integrity and stability.
Feature：
● All-digital, uncompressed, high-definition optical transmission
● Compliance with the VGA standard protocol
● Support Independent analog audio
● Automatic identification and configure various display modes
● The highest resolution to 1080P @ 60Hz, and compatible with downward resolution
● Single / multi-mode fiber transmission
● Built-in ESD protection circuitry, can effectively prevent electrostatic damage
● Site installation: easy, plug and play, no need to set
Port Description
|
Transmitter |
Function Description |
|
VGA IN |
VGA signal input port |
|
Audio IN |
Audio signal input port |
|
OPT OUT |
Optical fiber output interface |
|
DC/5V |
5V power input |
|
Receiver |
Function Description |
|
VGA OUT |
VGA signal output port |
|
Audio out |
The audio signal output |
|
OPT IN |
Optical input interface |
|
DC/5V |
5V power input |
Specifications
|
Operating Temperature Range |
-5 to +70°C |
|
Operating humidity range |
5 to 90 % RH (no condensation) |
|
Input and output video signal |
VGA |
|
Support Video Format |
1920*1080@60Hz
1280*1024@50Hz |
|
Transmission distance |
5KM-40KM The default is 5KM |
|
Input and output audio interface |
3.5MM Audio |
|
Support input and output audio formats |
44.1K,48K,96K,176K,192K |
|
Serial port baud rate |
115200 and following adaptively |
|
Input Power |
DC 5V / 2A |
|
Power Consumption |
Transmitter 5W |

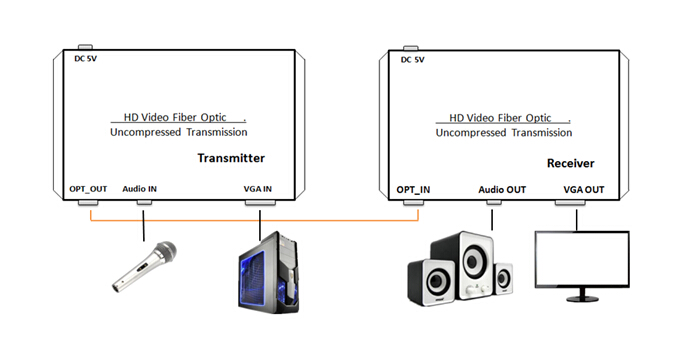

CJ3001V Optical Transceiver Application：
|
Part No |
VGA |
Audio |
KVM |
structure |
|
CJ-3001V |
1 |
1 |
0 |
Mini desktop |
|
CJ-3001VK |
1 |
1 |
Usb*2 |
Mini desktop |
|
CJ-3001V-4V |
4 |
4 |
0 |
1U, 19 inches |
