V.35 protocol converter

1*V.35 over ethernet(IP)

1*V.35
Product description: TDMoverIP equipment is mainly used for transmitting V.35 signal over IP network
INQUIRY

Product Description

TDMoverIP equipment is mainly used for transmitting V.35 signal over IP network. Enables operators and enterprises to seamlessly and reliably connect TDM devices and user Ethernet on a standard low-cost wireless or wired Ethernet / IP structure but no impact on quality. TDM over IP transparent to TDM signals ensures that any device with a physical V.35 interface is seamlessly connected such as the PBX mobile station SS7 signaling device and voice mail system. Can be used in IP-based communication systems such as: LAN WAN MAN and wireless networks.

Functional Properties

◆Provide Console (CLI) and WEB management interface convenient for installation;
◆ Provide a V.35 circuit two FE electrical port a FE SFP optical port;
Transparent transmission of V.35 signals over IP networks complies with ITU-T V.35 regulations
◆ clock recovery using a unique clock algorithm stable frequency slight jitter and drift;
◆ Provides three kinds of loopback function: Ethernet local loopback (ANA) V.35 local loopback (DIG) V.35 remote loopback (REM);
◆ Pseudo-random code test function easy to open the circuit can be used as a 2M BER tester to use
◆ V.35 interface supports hot swap; support and DTE or DCE device interconnection
◆ V.35 working clock can support the internal clock external clock line clock;
◆ High transmission efficiency low transmission delay; Ethernet packet length can be set to support long packets; Support VLAN settings;
◆ support V.35 link packet loss indication function;
◆ high transmission efficiency up to 90% bandwidth utilization efficiency;
◆ Support WEB network management software and hardware online upgrade locally and remotely;
◆ a variety of power options: AC220V DC-48V / DC24V etc .;

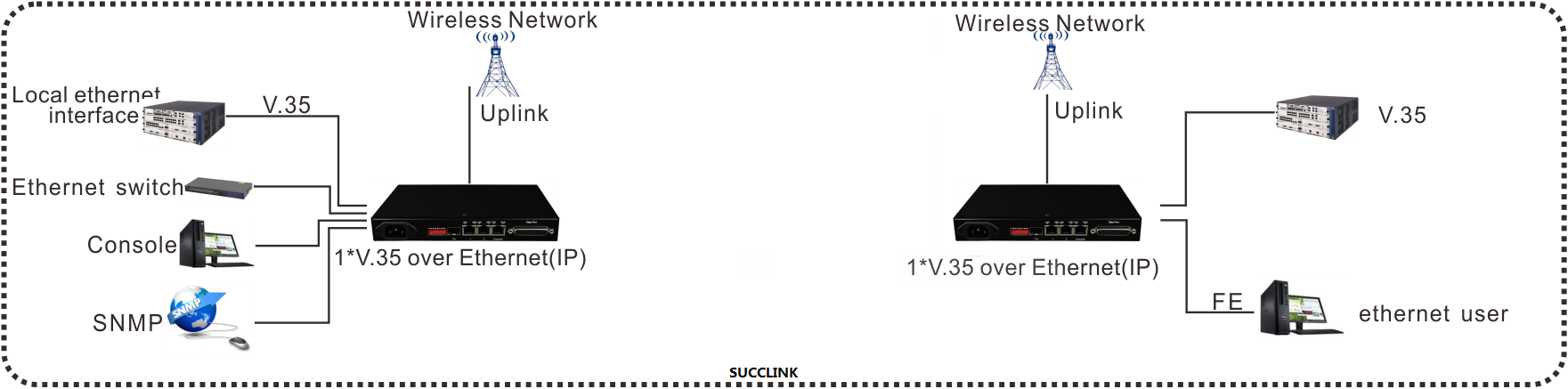

Application
